• DONGYANG^TM SFX-T UF

• DONGYANG^TM exteal pressure type SFX-T series ultrafiltration using thermally induced phase separation (TIPS) preparation of PVDF hollow fiber ultrafiltration membrane, high tensile strength, water flux in high, strong resistance and other characteristics;

• DONGYANG^TM SFX-T Series ultrafiltration components structure of exteal pressure, selectable dead-end filtration, flow, run two ways to ensure recovery.

• DONGYANG^TM SFX-T Series ultrafiltration using the safe and reliable design, gas flow distribution, water quality broad, the product can remain stable and reliable under extreme operating conditions.

• The company is based on many years of continuous innovation, development and investment, has been in municipal wastewater, industrial wastewater treatment, water reuse and other large-scale use in the field

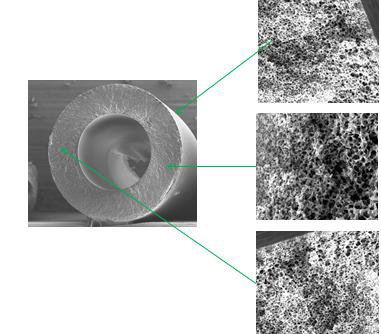

SEM

• DONGYANG^TM SFX-T features

• High tensile strength and long service life

• Single membrane elongation ≥300% Tensile strength ≥10Mpa;

Water flux, water quality stability

• Membrane sponge structure and high porosity;

• Membrane narrow pore size distribution, pore 0.1μm ;

Oxidation-resistant, strong acid and alkali

• Tolerance NaClO Concentrations of up to 5000ppm ;

• The scope of chemical cleaning pH1-13 Between short-term affordable PH14;

Dry storage for membrane

• Patented hydrophilic modification of membrane can be stored dry and used again to restore the original flux;

• Technical parameters

Category	Project	Model
		SFX-T-2660	SFX-T-2860	SFX-T-2880
The membrane characteristics	Membrane material	PVDF
	Filter	Exteal pressure
	/ Outer diameter mm	0.8/1.3
	Effective membrane area m2	33	52	78
	Filter pore size μm	0.1
	Standard flux L/(m2. hr. Bar.25℃)	≥600
Operating conditions	Design of water flux L/m2.hr	50-150
	Cleaning pH Range	1-13
	CEB Residual chlorine concentration mg/L	≤5000
	Operating temperature ℃	1-45
	Maximum inlet pressure MPa	0.5
	Maximum TMP MPa	0.3
	Maximum turbidity of the water NTU	300
	Single membrane gas strength m3/hr	5-12
	Gas pressure MPa	＜0.2

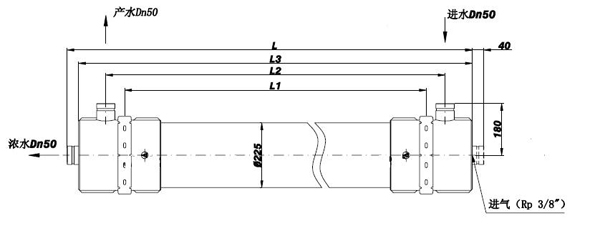

Model	L	L1	L2	L3
SFX-T-2660	1860	1500	1610	1710

Model	L	L1	L2	L3
SFX-T-2860	1860	1500	1630	1820
SFX-T-2880	2360	2000	2130	2320
